Modified Digital Photo Frame

March 2, 2009

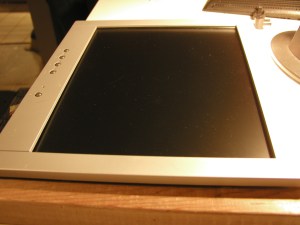

The first of March was a busy day. My oldest brother called after the Satsuma press workshop wondering if I was feeling creative.  He had a small project up his sleeve that required some matting skills. His goal was to recycle an Envision LCD monitor (our mother didn’t want)  into an elegant digital photo frame.  I figured “Why not! Come on over. Give me about 2hrs to get some space cleared in the studio.”  Well, it took about 4 hrs to get things cleared, but that was just fine due to a music rehearsal he forgot about.  As a side note, his group Milling About Smartly will be playing Block 15 on March 17 (Sea Shanties and the likes).

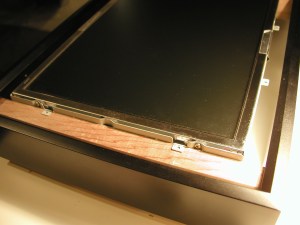

Once they arrived, beer & dinner consumed, we set to work. He had purchased a 12″x16″ black  shadowbox, thinking the entire monitor would easily fit  with matting. The entire case did fit. I examined it and said “Nope, not going to work due to the plastic framing.” The monitor has a 12″ screen length and 9″ height that could not be centered due to the external casing. So he and my husband Dave set about dismantling the plastic casing and found a very nice screen (and a few other parts) that could easily be mounted to a different surface. Dave found some cedar blocks that comfortably filled in the space after a few cuts on the table saw. Mike was then able to mount the naked screen to the blocks and drop the shadowbox over the unit. I took care of creating a double mat to accenting the screen.  By the end Mike & Shannon took home the start of a very inexpensive digital photo frame. He still has a bit of work to do regarding how the wiring will be routed through the back of the frame and on/off button,  but that won’t take him long. It ended up being a fun, hopefully functioning , project.  Plus, I got my studio space cleaned up!

Here are some of the photos….

envision-screennaked-screen-on-blocksscrew-platenaked-screen-inside-boxmatting-supplies

finished-productmike-fidigit-1double-matting2
